API 文档

开放平台接口说明与调用示例

中文文档 English Document

快速开始

注册开发者账号并提交企业资质审核
审核通过后，在「应用凭证」页面获取 SDKAppID 和 AppSecret
调用 /oauth/token 接口获取 access_token
携带 access_token 调用各业务接口

接口列表

接口	说明
`POST /oauth/token`	获取访问令牌
`POST /open/api/allocateThirdUserCode`	分配第三方用户识别码
`POST /open/api/bindDevice`	绑定设备
MQTT 实时数据	订阅专属Topic接收设备实时体征数据

完整文档请查看：API文档完整版

SDK下载与集成

下载各端SDK，快速接入Mild White宠物物联网开放平台

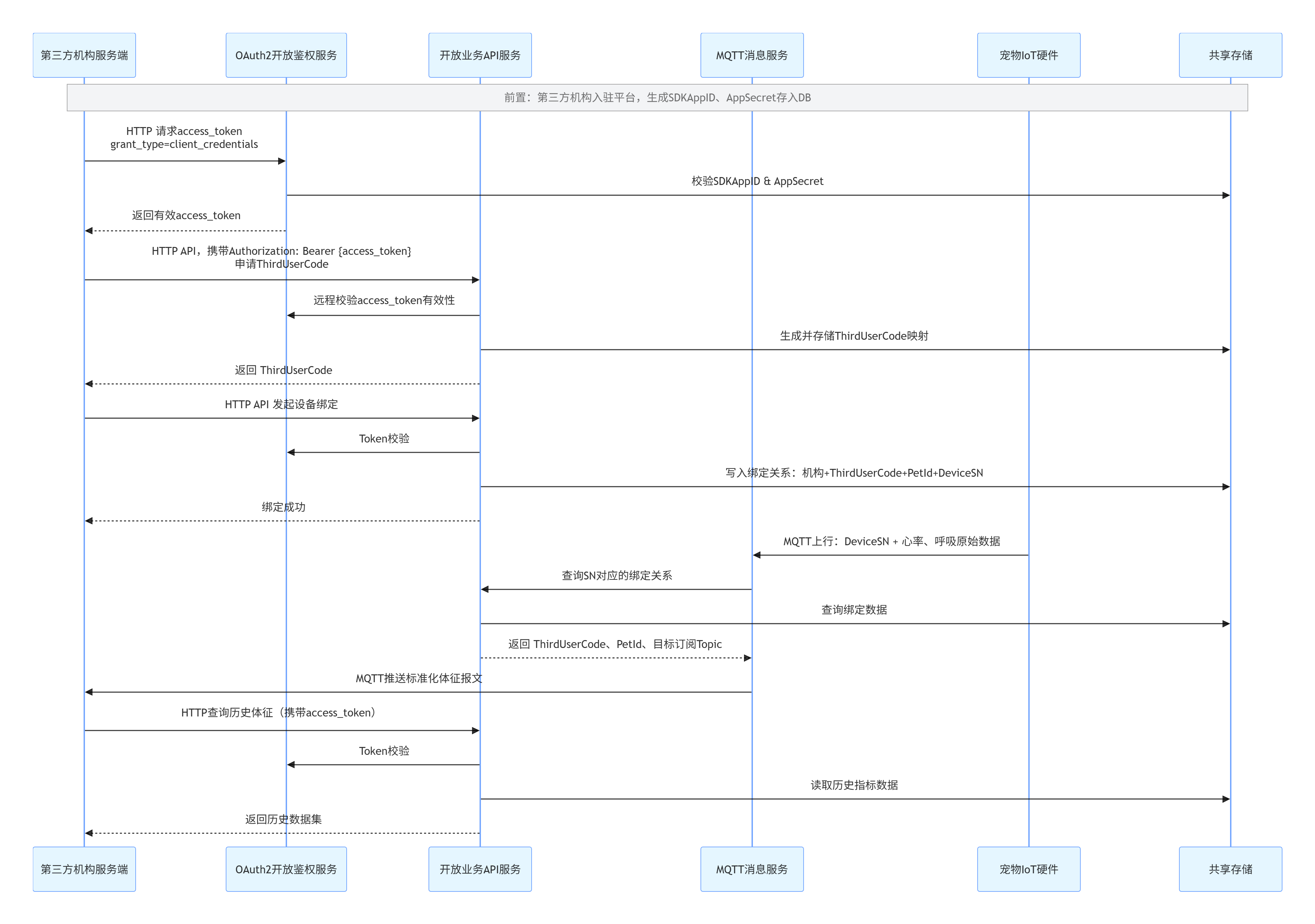

接入流程图

Mild White 开放平台接入指南（中文版）

文档说明

本文档为Mild White宠物健康开放平台接入指南，包含HTTP接口调用、MQTT实时数据订阅、错误码说明、接入示例等内容，适用于第三方开发者接入平台获取宠物健康数据。

一、接入流程

注册开放平台开发者账号，完成邮箱验证
提交企业资质申请，等待审核
审核通过后，在「应用凭证」页面获取SDKAppID和AppSecret
调用OAuth2接口获取access_token
调用HTTP接口完成用户、设备绑定
连接MQTT订阅实时体征数据

二、接口鉴权（OAuth2）

所有HTTP接口调用前需要先获取access_token，access_token有效期为2小时，过期需要重新获取。

2.1 获取access_token

接口地址：POST https://open.aidbai.com/oauth/token

Content-Type：application/x-www-form-urlencoded

请求参数：

参数名	类型	必填	说明
grant_type	string	是	固定值：`client_credentials`
sdk_app_id	string	是	平台分配的SDKAppID
app_secret	string	是	平台分配的AppSecret

返回示例：

{
  "code": 1,
  "msg": "成功",
  "data": {
    "accessToken": "3f84e01c6f5947a08a1d91c0f3928887",
    "expiresIn": 7200
  }
}

调用示例：

curl -X POST https://open.aidbai.com/oauth/token \
  -d "grant_type=client_credentials" \
  -d "sdk_app_id=你的SDKAppID" \
  -d "app_secret=你的AppSecret"

2.2 接口调用方式

所有业务接口请求需要在Header中携带Authorization：

Authorization: Bearer {access_token}
Content-Type: application/json

三、HTTP接口列表

3.1 分配第三方用户标识

第三方用户在你的平台注册后，调用此接口获取平台唯一用户标识ThirdUserCode，用于后续设备绑定和数据关联。

接口地址：POST https://open.aidbai.com/open/api/allocateThirdUserCode

请求参数：无

返回示例：

{
  "code": 1,
  "msg": "成功",
  "data": {
    "third_user_code": "a1b2c3d4e5f6g7h8"
  }
}

3.2 绑定设备

将设备SN与第三方用户、宠物ID绑定，绑定后该设备的实时数据会推送到你的MQTT主题。

接口地址：POST https://open.aidbai.com/open/api/bindDevice

请求参数：

参数名	类型	必填	说明
device_sn	string	是	设备SN序列号
third_user_code	string	是	平台分配的第三方用户标识
pet_id	long	否	第三方系统内的宠物ID

请求示例：

{
  "device_sn": "SN202607230001",
  "third_user_code": "a1b2c3d4e5f6g7h8",
  "pet_id": 10086
}

返回示例：

{
  "code": 1,
  "msg": "成功"
}

3.3 解绑设备

解绑已绑定的设备，解绑后不再推送该设备数据。

接口地址：POST https://open.aidbai.com/open/api/unbindDevice

请求参数：

参数名	类型	必填	说明
device_sn	string	是	设备SN序列号

请求示例：

{
  "device_sn": "SN202607230001"
}

返回示例：

{
  "code": 1,
  "msg": "成功"
}

3.4 查询设备归属

查询设备当前绑定的机构、用户信息。

接口地址：GET https://open.aidbai.com/open/api/getDeviceOwner?device_sn=xxx

返回示例：

{
  "code": 1,
  "msg": "成功",
  "data": {
    "sdk_app_id": "562d82168a3117df832ec305118fc5ca",
    "device_sn": "SN202607230001",
    "third_user_code": "a1b2c3d4e5f6g7h8",
    "pet_id": 10086
  }
}

四、MQTT实时数据接入

4.1 接入信息

项	值	说明
Broker地址	mqtt.aidbai.com	公网访问地址
TCP端口	1883	标准MQTT端口，无加密
MQTTS端口	8883	SSL加密端口（可选）
用户名	{你的SDKAppID}	平台分配的应用ID
密码	{你的AppSecret}	平台分配的应用密钥
订阅Topic	open/app/{SDKAppID}/realtime	仅可订阅自己SDKAppID的主题
QoS等级	1	推荐使用QoS1保证消息至少到达一次
消息格式	JSON（UTF-8编码）	所有消息统一JSON格式
时间标准	东八区（北京时间/UTC+8）	所有时间戳均为中国时区时间

4.2 订阅规则

权限隔离：每个机构只能订阅open/app/{你的SDKAppID}/realtime主题，系统自动禁止跨机构订阅
禁止通配符：不允许使用#、+等通配符订阅，会被直接拒绝连接
禁止发布：第三方客户端仅允许订阅消息，不允许向任何主题发布消息
连接数限制：每个SDKAppID默认最多支持10个长连接，需要更多连接可联系客服调整
离线消息：连接时设置Clean Session为false，离线期间的消息会在重连后推送

4.3 消息体字段说明

字段名	类型	说明
third_user_code	string	第三方用户唯一标识，通过`allocateThirdUserCode`接口分配
pet_id	long	宠物ID，第三方系统内的宠物唯一标识
device_sn	string	设备SN序列号
heart_rate	int	心率，单位：次/分钟，正常范围0-250
breath_rate	int	呼吸频率，单位：次/分钟，正常范围0-60
in_bed	boolean	是否在垫上：`true`=在垫上，`false`=离垫
activity	int	活动指数，范围0-100，数值越大活动越剧烈
heart_rate_probability	int	心率数据置信度，范围0-100，低于60建议过滤本次心率值
breath_rate_probability	int	呼吸数据置信度，范围0-100，低于60建议过滤本次呼吸值
timestamp	long	数据采集时间戳，13位毫秒级Unix时间戳（北京时间）

4.4 消息示例

4.4.1 常规周期上报示例（在垫状态，每10秒推送一次）

{
  "third_user_code": "a1b2c3d4e5f6g7h8",
  "pet_id": "10086",
  "device_sn": "SN202607230001",
  "heart_rate": 86,
  "breath_rate": 22,
  "in_bed": true,
  "activity": 12,
  "heart_rate_probability": 92,
  "breath_rate_probability": 88,
  "timestamp": 1753274400000
}

对应北京时间：2026-07-23 20:40:00

4.4.2 离垫状态示例（无有效心率呼吸数据）

{
  "third_user_code": "a1b2c3d4e5f6g7h8",
  "pet_id": "10086",
  "device_sn": "SN202607230001",
  "heart_rate": 0,
  "breath_rate": 0,
  "in_bed": false,
  "activity": 0,
  "heart_rate_probability": 0,
  "breath_rate_probability": 0,
  "timestamp": 1753274460000
}

4.5 订阅示例

4.5.1 Java 示例（Eclipse Paho）

import org.eclipse.paho.client.mqttv3.*;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;

public class MqttSubscribeExample {
    public static void main(String[] args) {
        String broker = "tcp://mqtt.aidbai.com:1883";
        String sdkAppId = "你的SDKAppID";
        String appSecret = "你的AppSecret";
        String topic = "open/app/" + sdkAppId + "/realtime";
        String clientId = "server_" + sdkAppId + "_" + System.currentTimeMillis();

        try {
            MqttClient client = new MqttClient(broker, clientId, new MemoryPersistence());
            MqttConnectOptions options = new MqttConnectOptions();
            options.setUserName(sdkAppId);
            options.setPassword(appSecret.toCharArray());
            options.setCleanSession(false);
            options.setConnectionTimeout(10);
            options.setKeepAliveInterval(30);
            options.setAutomaticReconnect(true);

            client.setCallback(new MqttCallback() {
                @Override
                public void connectionLost(Throwable cause) {
                    System.out.println("连接断开，自动重连: " + cause.getMessage());
                }
                @Override
                public void messageArrived(String topic, MqttMessage message) {
                    String payload = new String(message.getPayload());
                    System.out.println("收到消息: " + payload);
                }
                @Override
                public void deliveryComplete(IMqttDeliveryToken token) {}
            });
            client.connect(options);
            client.subscribe(topic, 1);
        } catch (MqttException e) {
            e.printStackTrace();
        }
    }
}

4.5.2 PHP 示例（php-mqtt/client）

<?php
require __DIR__ . '/vendor/autoload.php';
use PhpMqtt\Client\MqttClient;
use PhpMqtt\Client\ConnectionSettings;

$server   = 'mqtt.aidbai.com';
$port     = 1883;
$sdkAppId = '你的SDKAppID';
$appSecret = '你的AppSecret';
$topic    = "open/app/{$sdkAppId}/realtime";
$clientId = 'php_server_' . uniqid();

$connectionSettings = (new ConnectionSettings())
    ->setUsername($sdkAppId)
    ->setPassword($appSecret)
    ->setKeepAliveInterval(30)
    ->setConnectTimeout(10)
    ->setReconnectAutomatically(true);

$mqtt = new MqttClient($server, $port, $clientId);
$mqtt->connect($connectionSettings, true);
$mqtt->subscribe($topic, function (string $topic, string $message) {
    echo "收到消息: {$message}\n";
}, 1);
$mqtt->loop(true);

4.5.3 Python 示例（paho-mqtt）

import paho.mqtt.client as mqtt
import json

BROKER = "mqtt.aidbai.com"
PORT = 1883
SDK_APP_ID = "你的SDKAppID"
APP_SECRET = "你的AppSecret"
TOPIC = f"open/app/{SDK_APP_ID}/realtime"

def on_connect(client, userdata, flags, rc):
    print(f"连接成功，结果码: {rc}")
    client.subscribe(TOPIC, qos=1)

def on_message(client, userdata, msg):
    payload = json.loads(msg.payload.decode('utf-8'))
    print(f"收到消息: {payload}")

client = mqtt.Client(client_id=f"python_server_{SDK_APP_ID}", clean_session=False)
client.username_pw_set(SDK_APP_ID, APP_SECRET)
client.on_connect = on_connect
client.on_message = on_message
client.connect(BROKER, PORT, 60)
client.loop_forever()

五、错误码说明

错误码	说明
1	请求成功
401	未授权/未登录/access_token无效或过期/缺少认证请求头
40000	请求方法不支持
40001	SDKAppID不存在或AppSecret错误
40002	应用已被禁用
40003	参数错误（缺少必填参数、格式错误、类型错误、JSON解析失败）
40004	邮箱已注册
40005	密码长度不足6位
40006	验证码错误或已过期
40007	邮箱或密码错误
40008	门户账号已被禁用
40010	设备已被其他账号绑定
40011	资质申请已通过，无需重复提交
40012	设备未绑定
40013	无权操作该设备/设备不属于当前应用
40014	设备不存在，请确认设备SN正确
42901	请求过于频繁，请稍后重试
50000	操作失败/服务内部异常

六、常见问题

6.1 HTTP接口调用返回401

检查access_token是否正确，是否过期
检查Authorization头格式是否为Bearer {access_token}
检查接口是否携带正确的Content-Type: application/json

6.2 MQTT连接失败提示"Not authorized"

检查SDKAppID和AppSecret是否正确，注意前后不要有空格
检查应用状态是否正常，是否被禁用
检查是否超过最大连接数限制

6.3 MQTT订阅失败

检查订阅的Topic是否正确，必须为open/app/{你的SDKAppID}/realtime
确认没有使用通配符#或+
确认Topic中的SDKAppID和连接用户名一致

6.4 收不到MQTT消息

检查设备是否已经绑定到你的应用下
检查设备是否在线、是否在垫上
确认QoS设置为1，Clean Session设置为false
检查网络是否开放1883端口，云服务器安全组是否放开端口

6.5 时间戳解析错误

所有时间戳为东八区（北京时间）13位毫秒时间戳，解析时按UTC+8时区转换

七、技术支持

如有接入问题，请联系技术支持：mw@aidbai.com

Mild White Open Platform Integration Guide (English Version)

Document Description

This document is the integration guide for Mild White Pet Health Open Platform, including HTTP API calls, MQTT real-time data subscription, error code descriptions, and integration examples, suitable for third-party developers to access the platform to obtain pet health data.

1. Integration Process

Register an open platform developer account and complete email verification
Submit enterprise qualification application and wait for review
After approval, obtain SDKAppID and AppSecret on the "Application Credentials" page
Call OAuth2 interface to get access_token
Call HTTP interfaces to complete user and device binding
Connect to MQTT to subscribe to real-time vital sign data

2. API Authentication (OAuth2)

Before calling all HTTP APIs, you need to obtain an access_token first. The access_token is valid for 2 hours and needs to be re-obtained after expiration.

2.1 Get access_token

API Endpoint: POST https://open.aidbai.com/oauth/token

Content-Type: application/x-www-form-urlencoded

Request Parameters:

Parameter	Type	Required	Description
grant_type	string	Yes	Fixed value: `client_credentials`
sdk_app_id	string	Yes	SDKAppID assigned by the platform
app_secret	string	Yes	AppSecret assigned by the platform

Response Example:

{
  "code": 1,
  "msg": "success",
  "data": {
    "accessToken": "3f84e01c6f5947a08a1d91c0f3928887",
    "expiresIn": 7200
  }
}

Call Example:

curl -X POST https://open.aidbai.com/oauth/token \
  -d "grant_type=client_credentials" \
  -d "sdk_app_id=YOUR_SDK_APP_ID" \
  -d "app_secret=YOUR_APP_SECRET"

2.2 API Call Method

All business API requests need to carry Authorization in the Header:

Authorization: Bearer {access_token}
Content-Type: application/json

3. HTTP API List

3.1 Allocate Third-party User Code

After a third-party user registers on your platform, call this interface to obtain the platform's unique user identifier ThirdUserCode, which is used for subsequent device binding and data association.

API Endpoint: POST https://open.aidbai.com/open/api/allocateThirdUserCode

Request Parameters: None

Response Example:

{
  "code": 1,
  "msg": "success",
  "data": {
    "third_user_code": "a1b2c3d4e5f6g7h8"
  }
}

3.2 Bind Device

Bind the device SN with the third-party user and pet ID. After binding, real-time data of the device will be pushed to your MQTT topic.

API Endpoint: POST https://open.aidbai.com/open/api/bindDevice

Request Parameters:

Parameter	Type	Required	Description
device_sn	string	Yes	Device SN serial number
third_user_code	string	Yes	Third-party user identifier assigned by the platform
pet_id	long	No	Pet ID in the third-party system

Request Example:

{
  "device_sn": "SN202607230001",
  "third_user_code": "a1b2c3d4e5f6g7h8",
  "pet_id": 10086
}

Response Example:

{
  "code": 1,
  "msg": "success"
}

3.3 Unbind Device

Unbind a bound device, after which data for that device will no longer be pushed.

API Endpoint: POST https://open.aidbai.com/open/api/unbindDevice

Request Parameters:

Parameter	Type	Required	Description
device_sn	string	Yes	Device SN serial number

Request Example:

{
  "device_sn": "SN202607230001"
}

Response Example:

{
  "code": 1,
  "msg": "success"
}

3.4 Query Device Ownership

Query the organization and user information currently bound to the device.

API Endpoint: GET https://open.aidbai.com/open/api/getDeviceOwner?device_sn=xxx

Response Example:

{
  "code": 1,
  "msg": "success",
  "data": {
    "sdk_app_id": "562d82168a3117df832ec305118fc5ca",
    "device_sn": "SN202607230001",
    "third_user_code": "a1b2c3d4e5f6g7h8",
    "pet_id": 10086
  }
}

4. MQTT Real-time Data Access

4.1 Access Information

Item	Value	Description
Broker Address	mqtt.aidbai.com	Public network access address
TCP Port	1883	Standard MQTT port, unencrypted
MQTTS Port	8883	SSL encrypted port (optional)
Username	{YOUR_SDK_APP_ID}	Application ID assigned by the platform
Password	{YOUR_APP_SECRET}	Application secret assigned by the platform
Subscribe Topic	open/app/{SDKAppID}/realtime	You can only subscribe to topics with your own SDKAppID
QoS Level	1	QoS1 is recommended to ensure messages arrive at least once
Message Format	JSON (UTF-8 encoding)	All messages are in unified JSON format
Time Standard	UTC+8 (Beijing Time)	All timestamps are in China time zone

4.2 Subscription Rules

Permission Isolation: Each organization can only subscribe to the open/app/{your SDKAppID}/realtime topic, cross-organization subscriptions are automatically prohibited by the system
Wildcards Prohibited: Subscriptions using wildcards such as # and + are not allowed and will be directly rejected
Publishing Prohibited: Third-party clients are only allowed to subscribe to messages, and are not allowed to publish messages to any topic
Connection Limit: Each SDKAppID supports up to 10 long connections by default, contact customer service for more connections
Offline Messages: Set Clean Session to false when connecting, messages during offline period will be pushed after reconnection

4.3 Message Body Field Description

Field	Type	Description
third_user_code	string	Third-party user unique identifier, allocated through the `allocateThirdUserCode` interface
pet_id	long	Pet ID, the unique identifier of the pet in the third-party system
device_sn	string	Device SN serial number
heart_rate	int	Heart rate, unit: beats per minute, normal range 0-250
breath_rate	int	Respiratory rate, unit: breaths per minute, normal range 0-60
in_bed	boolean	Whether on the pad: `true`=on pad, `false`=off pad
activity	int	Activity index, range 0-100, higher value means more intense activity
heart_rate_probability	int	Heart rate data confidence, range 0-100, it is recommended to filter heart rate values below 60
breath_rate_probability	int	Breath rate data confidence, range 0-100, it is recommended to filter breath rate values below 60
timestamp	long	Data collection timestamp, 13-bit millisecond Unix timestamp (Beijing time)

4.4 Message Examples

4.4.1 Regular Periodic Report Example (on pad status, pushed every 10 seconds)

{
  "third_user_code": "a1b2c3d4e5f6g7h8",
  "pet_id": "10086",
  "device_sn": "SN202607230001",
  "heart_rate": 86,
  "breath_rate": 22,
  "in_bed": true,
  "activity": 12,
  "heart_rate_probability": 92,
  "breath_rate_probability": 88,
  "timestamp": 1753274400000
}

Corresponding Beijing time: 2026-07-23 20:40:00

4.4.2 Off-pad Status Example (no valid heart rate/breath data)

{
  "third_user_code": "a1b2c3d4e5f6g7h8",
  "pet_id": "10086",
  "device_sn": "SN202607230001",
  "heart_rate": 0,
  "breath_rate": 0,
  "in_bed": false,
  "activity": 0,
  "heart_rate_probability": 0,
  "breath_rate_probability": 0,
  "timestamp": 1753274460000
}

4.5 Subscription Examples

4.5.1 Java Example (Eclipse Paho)

import org.eclipse.paho.client.mqttv3.*;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;

public class MqttSubscribeExample {
    public static void main(String[] args) {
        String broker = "tcp://mqtt.aidbai.com:1883";
        String sdkAppId = "YOUR_SDK_APP_ID";
        String appSecret = "YOUR_APP_SECRET";
        String topic = "open/app/" + sdkAppId + "/realtime";
        String clientId = "server_" + sdkAppId + "_" + System.currentTimeMillis();

        try {
            MqttClient client = new MqttClient(broker, clientId, new MemoryPersistence());
            MqttConnectOptions options = new MqttConnectOptions();
            options.setUserName(sdkAppId);
            options.setPassword(appSecret.toCharArray());
            options.setCleanSession(false);
            options.setConnectionTimeout(10);
            options.setKeepAliveInterval(30);
            options.setAutomaticReconnect(true);

            client.setCallback(new MqttCallback() {
                @Override
                public void connectionLost(Throwable cause) {
                    System.out.println("Connection lost, auto reconnecting: " + cause.getMessage());
                }
                @Override
                public void messageArrived(String topic, MqttMessage message) {
                    String payload = new String(message.getPayload());
                    System.out.println("Message received: " + payload);
                }
                @Override
                public void deliveryComplete(IMqttDeliveryToken token) {}
            });
            client.connect(options);
            client.subscribe(topic, 1);
        } catch (MqttException e) {
            e.printStackTrace();
        }
    }
}

4.5.2 PHP Example (php-mqtt/client)

<?php
require __DIR__ . '/vendor/autoload.php';
use PhpMqtt\Client\MqttClient;
use PhpMqtt\Client\ConnectionSettings;

$server   = 'mqtt.aidbai.com';
$port     = 1883;
$sdkAppId = 'YOUR_SDK_APP_ID';
$appSecret = 'YOUR_APP_SECRET';
$topic    = "open/app/{$sdkAppId}/realtime";
$clientId = 'php_server_' . uniqid();

$connectionSettings = (new ConnectionSettings())
    ->setUsername($sdkAppId)
    ->setPassword($appSecret)
    ->setKeepAliveInterval(30)
    ->setConnectTimeout(10)
    ->setReconnectAutomatically(true);

$mqtt = new MqttClient($server, $port, $clientId);
$mqtt->connect($connectionSettings, true);
$mqtt->subscribe($topic, function (string $topic, string $message) {
    echo "Message received: {$message}\n";
}, 1);
$mqtt->loop(true);

4.5.3 Python Example (paho-mqtt)

import paho.mqtt.client as mqtt
import json

BROKER = "mqtt.aidbai.com"
PORT = 1883
SDK_APP_ID = "YOUR_SDK_APP_ID"
APP_SECRET = "YOUR_APP_SECRET"
TOPIC = f"open/app/{SDK_APP_ID}/realtime"

def on_connect(client, userdata, flags, rc):
    print(f"Connected successfully, result code: {rc}")
    client.subscribe(TOPIC, qos=1)

def on_message(client, userdata, msg):
    payload = json.loads(msg.payload.decode('utf-8'))
    print(f"Message received: {payload}")

client = mqtt.Client(client_id=f"python_server_{SDK_APP_ID}", clean_session=False)
client.username_pw_set(SDK_APP_ID, APP_SECRET)
client.on_connect = on_connect
client.on_message = on_message
client.connect(BROKER, PORT, 60)
client.loop_forever()

5. Error Code Description

Error Code	Description
1	Request successful
401	Unauthorized/Not logged in/access_token invalid or expired/Missing authentication header
40000	Request method not supported
40001	SDKAppID not exist or AppSecret mismatch
40002	Application has been disabled
40003	Parameter error (missing required parameter, format error, type mismatch, JSON parse failed)
40004	Email already registered
40005	Password length must be at least 6 characters
40006	Verification code error or expired
40007	Email or password incorrect
40008	Portal account has been disabled
40010	Device has been bound by another account
40011	Qualification application already approved, no need to resubmit
40012	Device not bound
40013	No permission to operate this device/Device does not belong to current application
40014	Device not exist, please check device SN
42901	Too many requests, please try again later
50000	Operation failed/Internal server error

6. FAQ

6.1 HTTP API call returns 401

Check if the access_token is correct and not expired
Check if the Authorization header format is Bearer {access_token}
Check if the interface carries the correct Content-Type: application/json

6.2 MQTT connection fails with "Not authorized"

Check if SDKAppID and AppSecret are correct, make sure there are no spaces before or after
Check if the application status is normal and not disabled
Check if the maximum number of connections is exceeded

6.3 MQTT subscription fails

Check if the subscribed Topic is correct, it must be open/app/{your SDKAppID}/realtime
Make sure no wildcards # or + are used
Make sure the SDKAppID in the Topic matches the connection username

6.4 Not receiving MQTT messages

Check if the device is bound to your application
Check if the device is online and on the pad
Make sure QoS is set to 1 and Clean Session is set to false
Check if port 1883 is open on the network, and if the cloud server security group allows the port

6.5 Timestamp parsing error

All timestamps are 13-bit millisecond timestamps in UTC+8 (Beijing Time), convert according to UTC+8 time zone when parsing

7. Technical Support

If you have integration questions, please contact technical support: mw@aidbai.com

SDK下载

Android 原生SDK

v1.0.0 · 2026-07-24

支持Android 6.0+，包含MQTT连接、数据解析、断线重连能力

立即下载

iOS 原生SDK

v1.0.0 · 2026-07-24

支持iOS 12.0+，Swift/OC双语言支持，包含MQTT连接、数据解析能力

立即下载

鸿蒙原生SDK

v1.0.0 · 2026-07-24

支持HarmonyOS NEXT/API 12+，ArkTS语言，适配鸿蒙原生系统能力

立即下载

Flutter SDK

v1.0.0 · 2026-07-24

支持Flutter 3.0+，跨平台支持Android/iOS，一套代码多端运行

立即下载

UniAppX SDK

v1.0.0 · 2026-07-24

支持UniAppX UTS语言，原生渲染，兼容多端小程序与App平台

立即下载

Python SDK

v1.0.0 · 2026-07-24

支持Python 3.8+，适用于服务端接入、数据处理、脚本开发场景

立即下载

用量统计

查看API调用和MQTT消息使用情况

今日API调用

0

配额 120次/分钟

今日MQTT消息

0

配额 300条/分钟

在线设备数

0

当前在线

绑定设备总数

0

累计绑定

Mild White 开放平台

欢迎回来，开发者

快速开始

资质申请

应用凭证

资质审核中

应用信息

限流配置

API 文档

快速开始

接口列表

SDK下载与集成

接入流程图

Mild White 开放平台接入指南（中文版）

文档说明

一、接入流程

二、接口鉴权（OAuth2）

2.1 获取access_token

2.2 接口调用方式

三、HTTP接口列表

3.1 分配第三方用户标识

3.2 绑定设备

3.3 解绑设备

3.4 查询设备归属

四、MQTT实时数据接入

4.1 接入信息

4.2 订阅规则

4.3 消息体字段说明

4.4 消息示例

4.5 订阅示例

五、错误码说明

六、常见问题

七、技术支持

Mild White Open Platform Integration Guide (English Version)

Document Description

1. Integration Process

2. API Authentication (OAuth2)

2.1 Get access_token

2.2 API Call Method

3. HTTP API List

3.1 Allocate Third-party User Code

3.2 Bind Device

3.3 Unbind Device

3.4 Query Device Ownership

4. MQTT Real-time Data Access

4.1 Access Information

4.2 Subscription Rules

4.3 Message Body Field Description

4.4 Message Examples

4.5 Subscription Examples

5. Error Code Description

6. FAQ

7. Technical Support

SDK下载

用量统计

调用趋势（近7天）

开发者服务协议

提交技术支持工单
